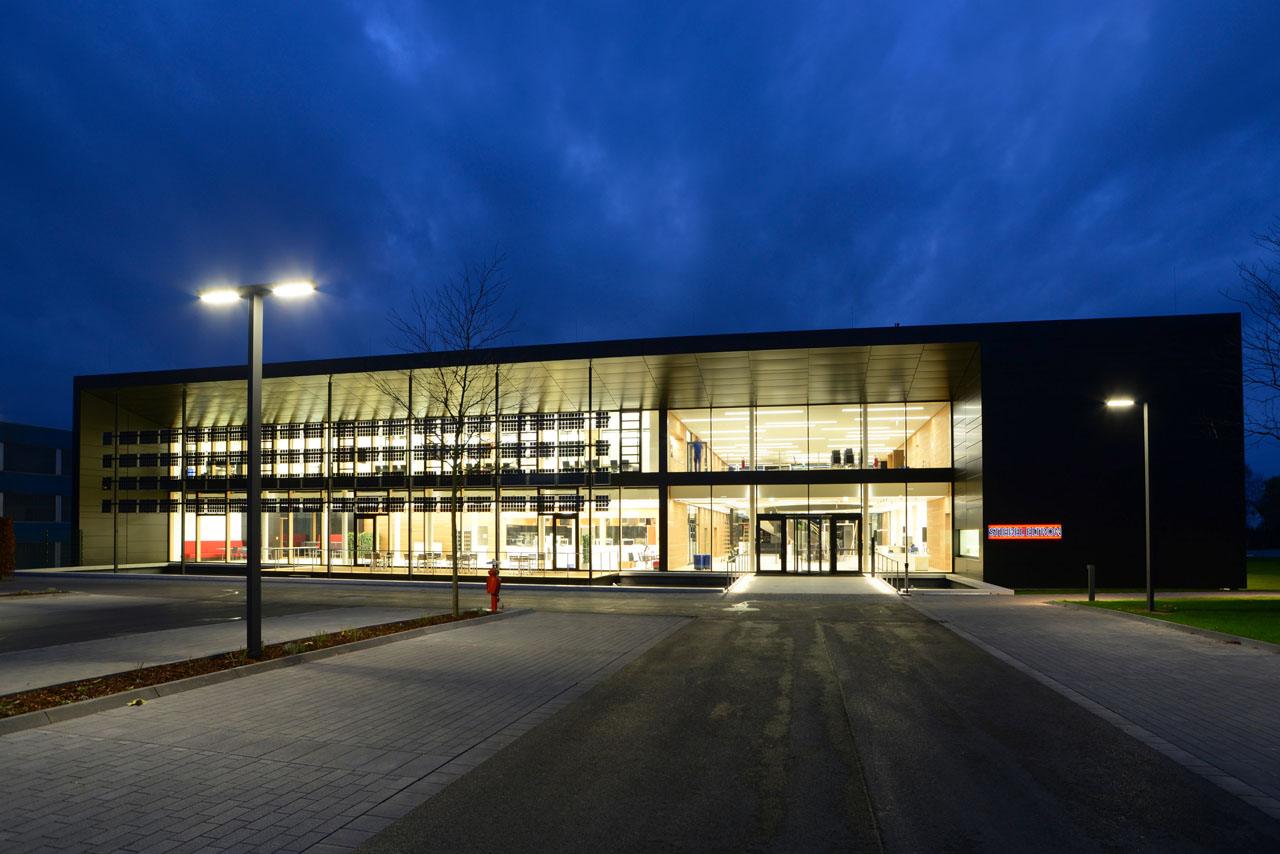

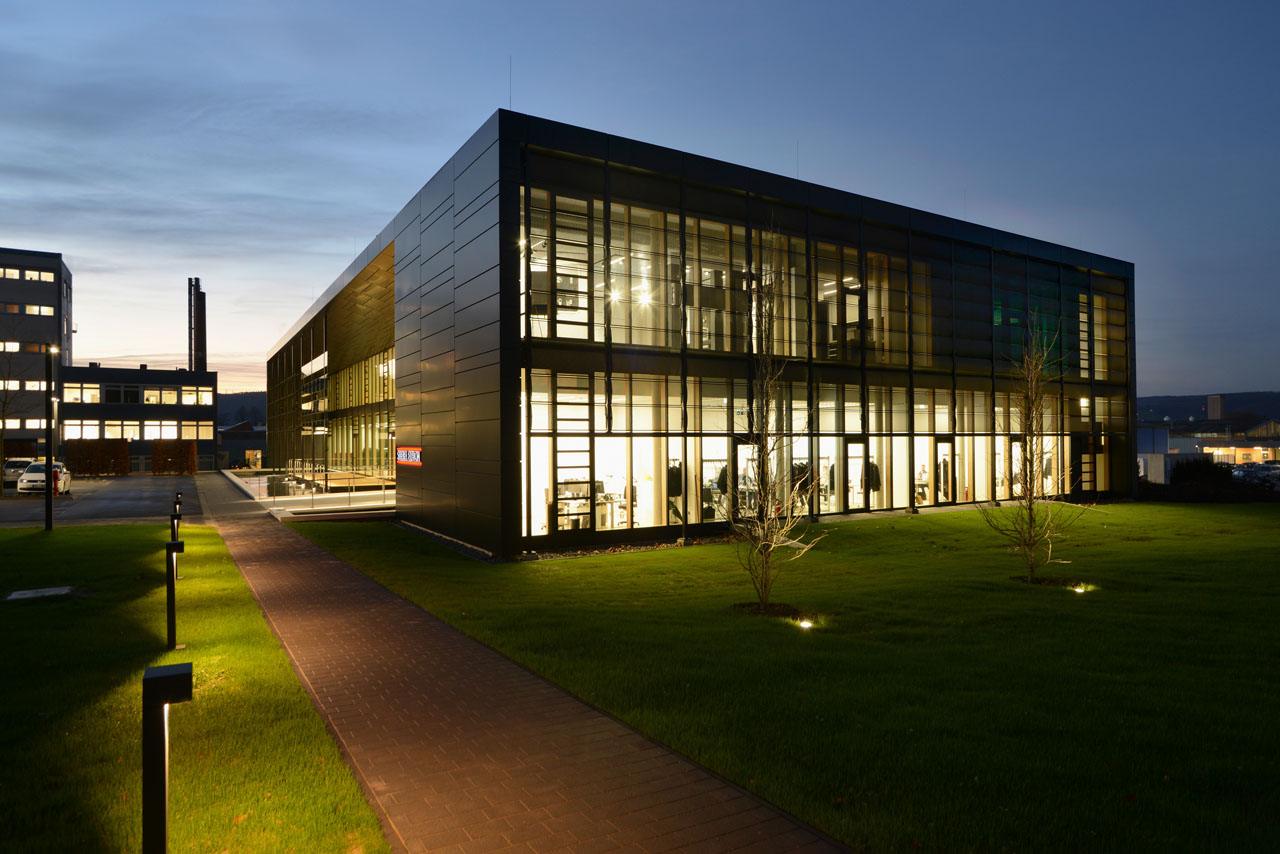

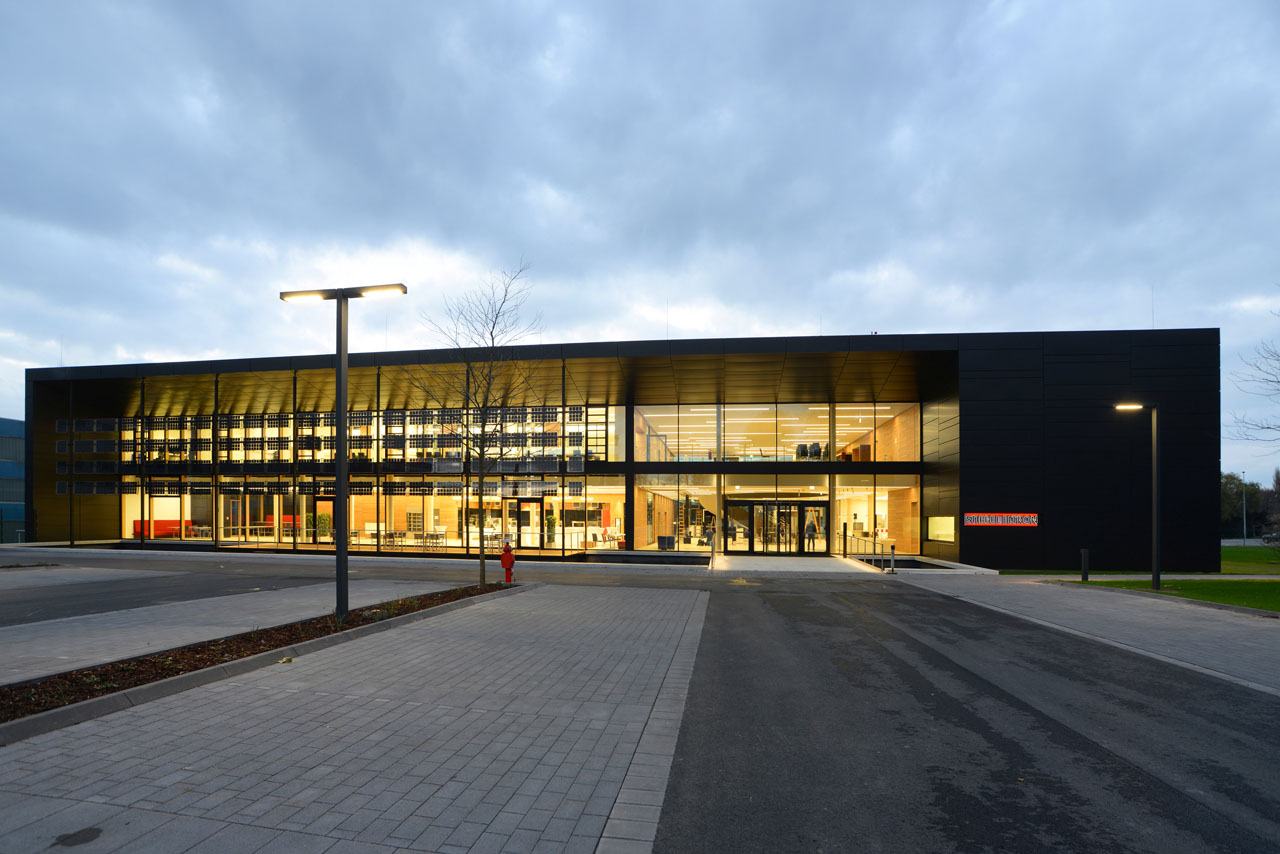

Energy Campus Stiebel Eltron

Sun tracking photovoltaic & aluminium louvers

Sun tracking photovoltaic & aluminium louvers
Energy Campus Stiebel Eltron

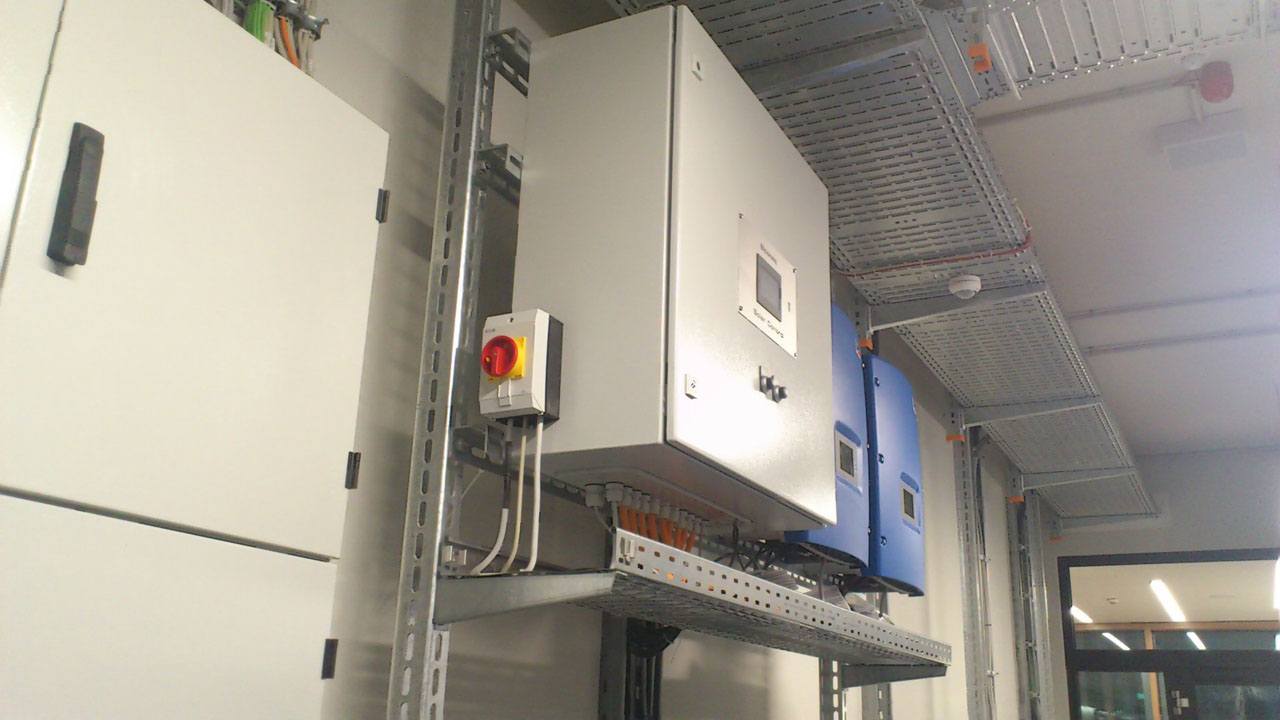

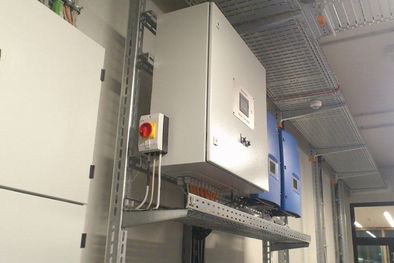

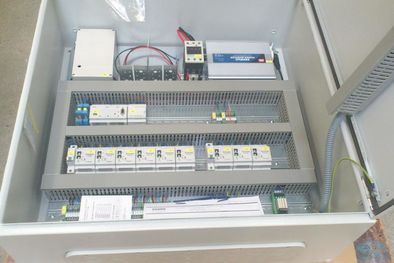

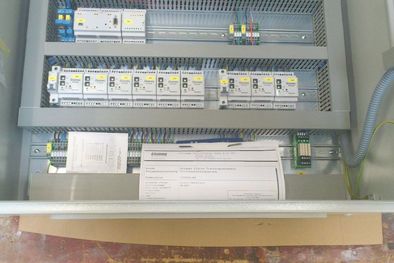

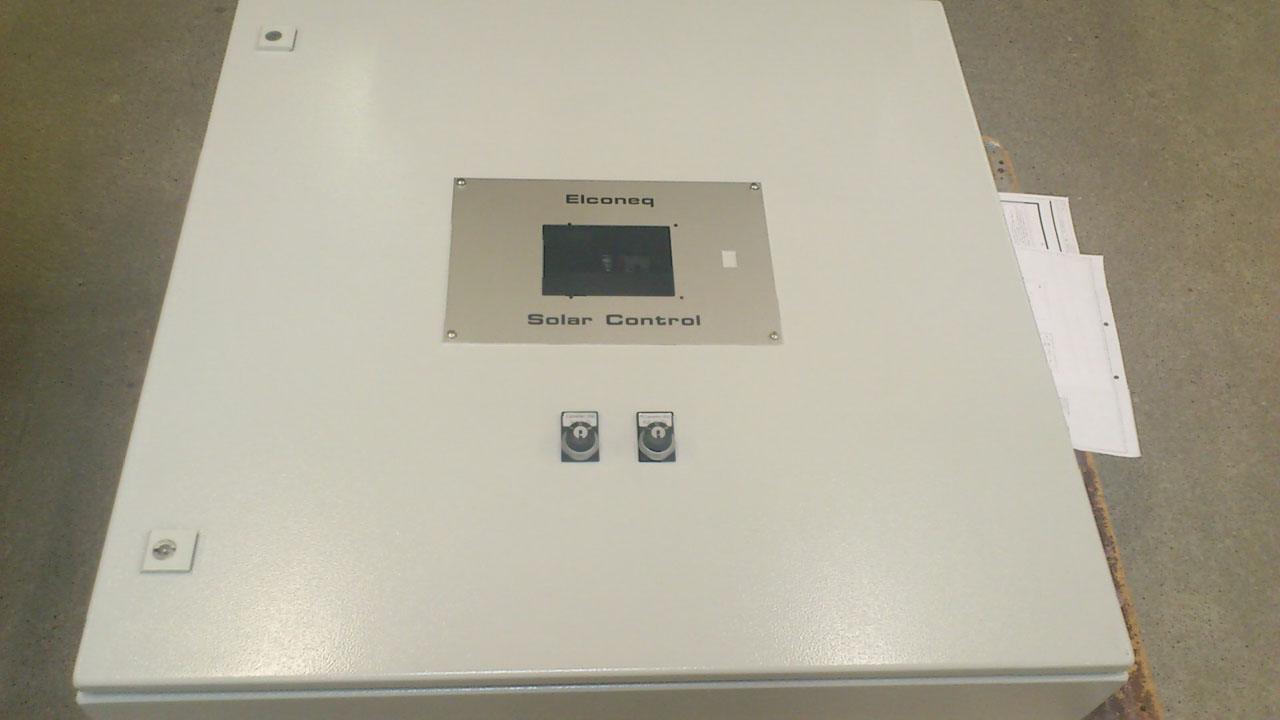

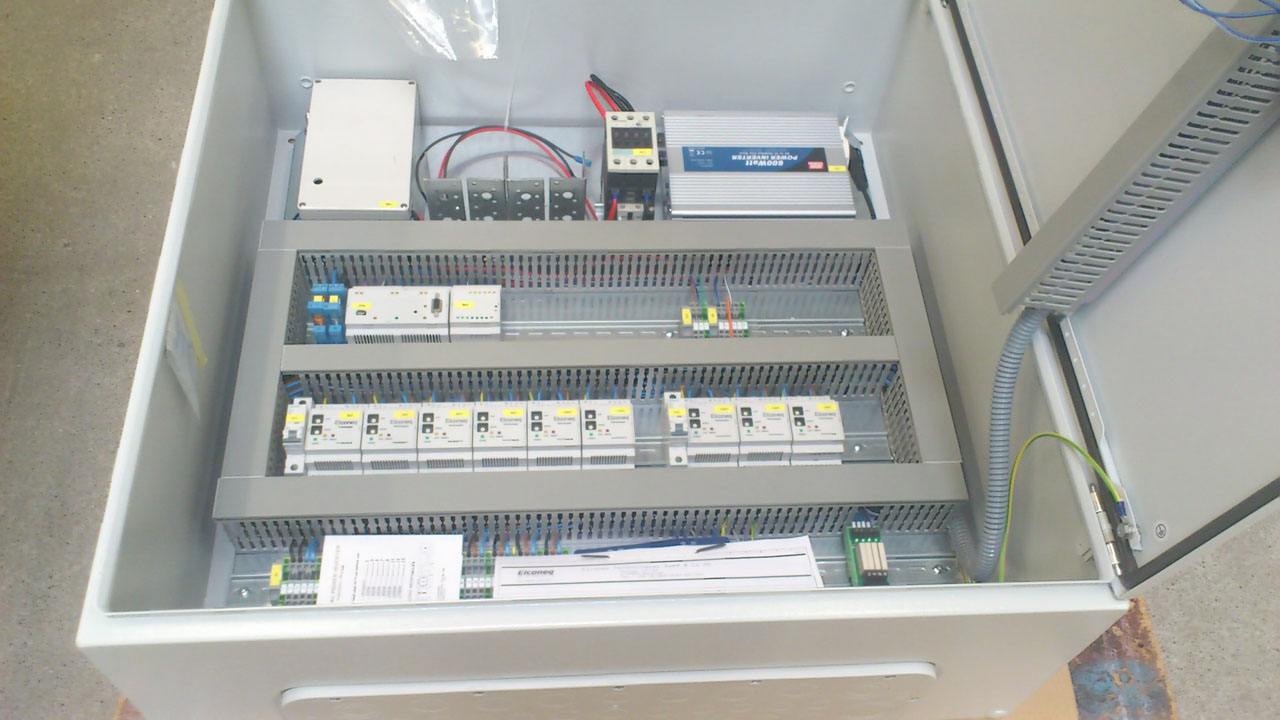

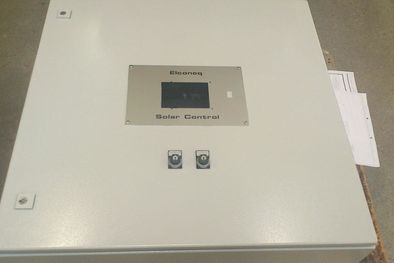

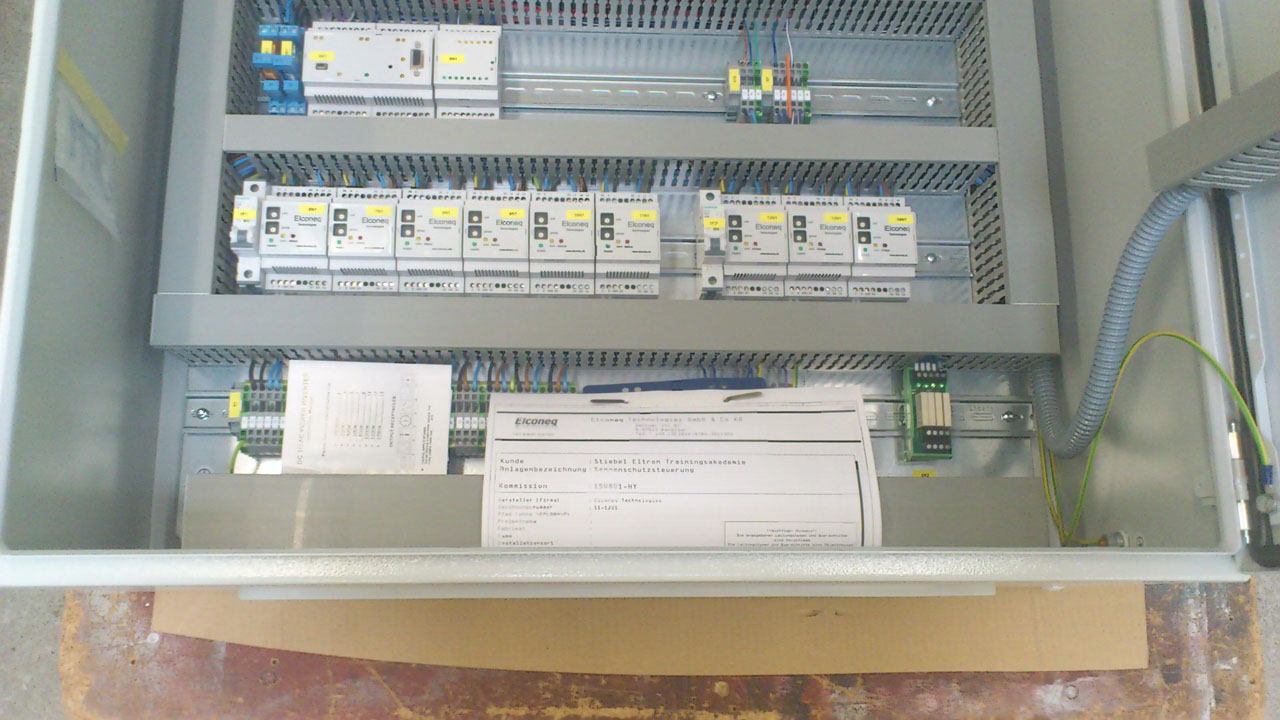

Conception of louver control, louver sun protection east and PV louver south. Production, delivery and commissioning of the louver control, type Elconeq Concept.

  • Daylight optimized algorithms increase the light yield in the rooms
  • Optimized tracking mode significantly improves the energy yield of the PV system

6 linear motors, 1200 N, move the east louvers. The PV louvers in the south area are reliably moved into position by 3 linear motors, 5000 N.

  • DGNB PLATIN CERTIFIED

  • Location: Holzminden, Germany
  • Use: Training and communication centre
  • Architect: HHS Planer + Architekten AG; Kassel
  • Client: Hype GmbH, Günzburg
  • Picture credits: Stiebel Eltron, Holzminden

Request

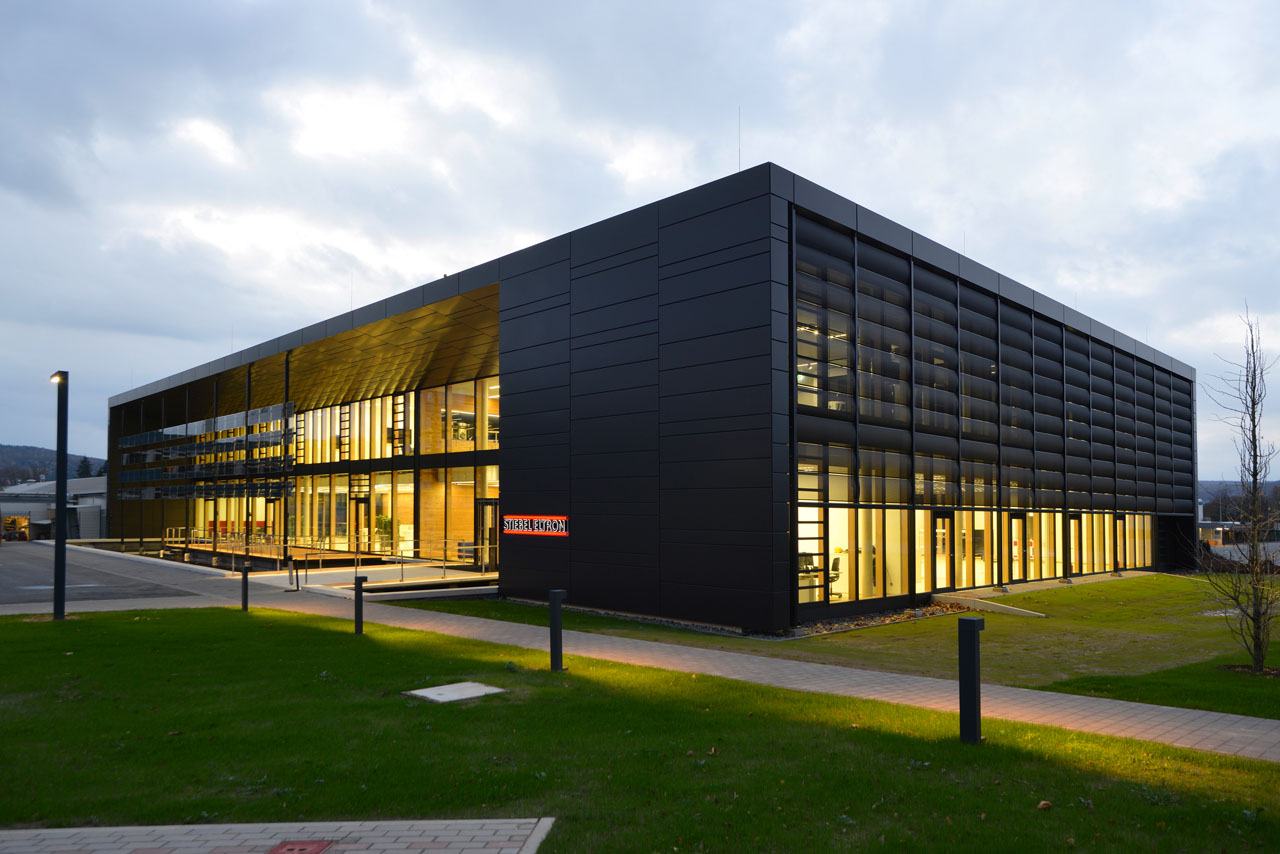

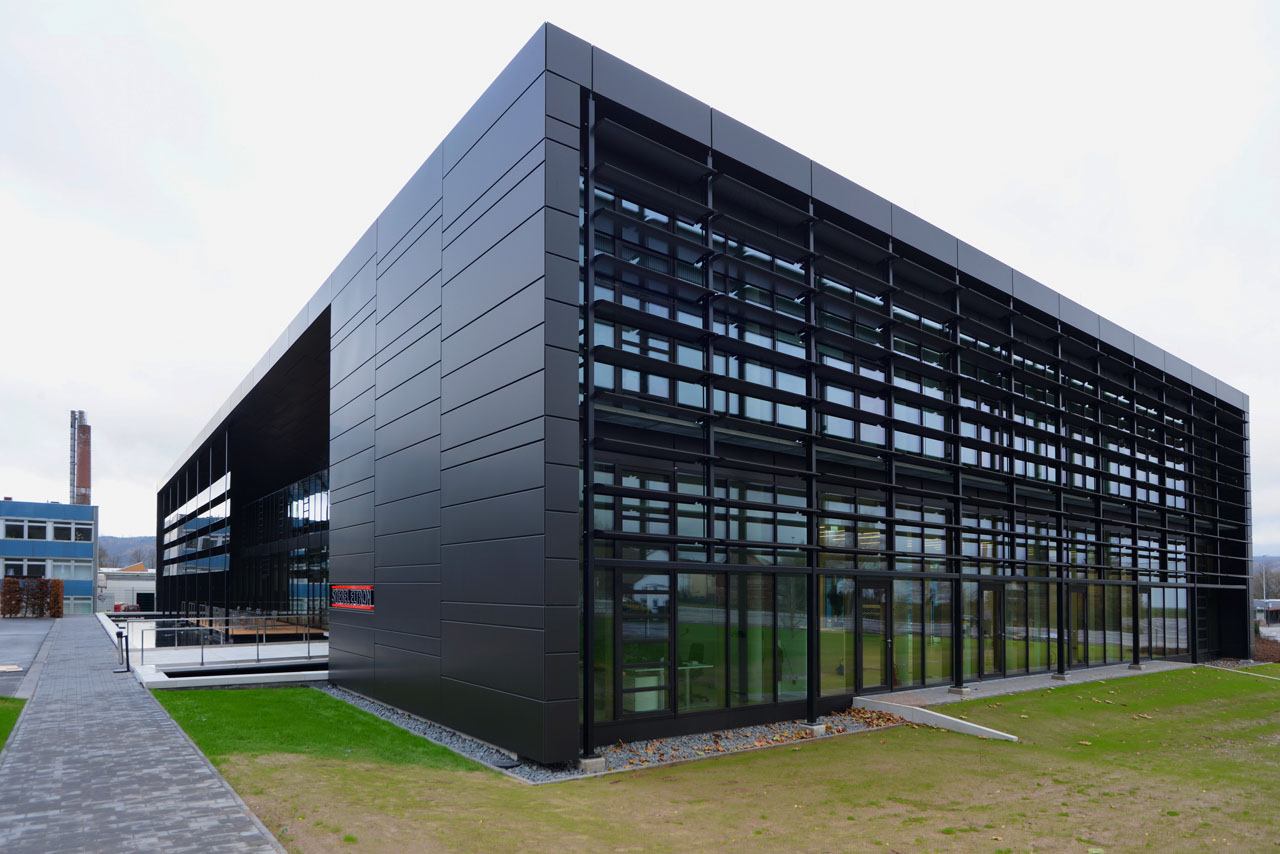

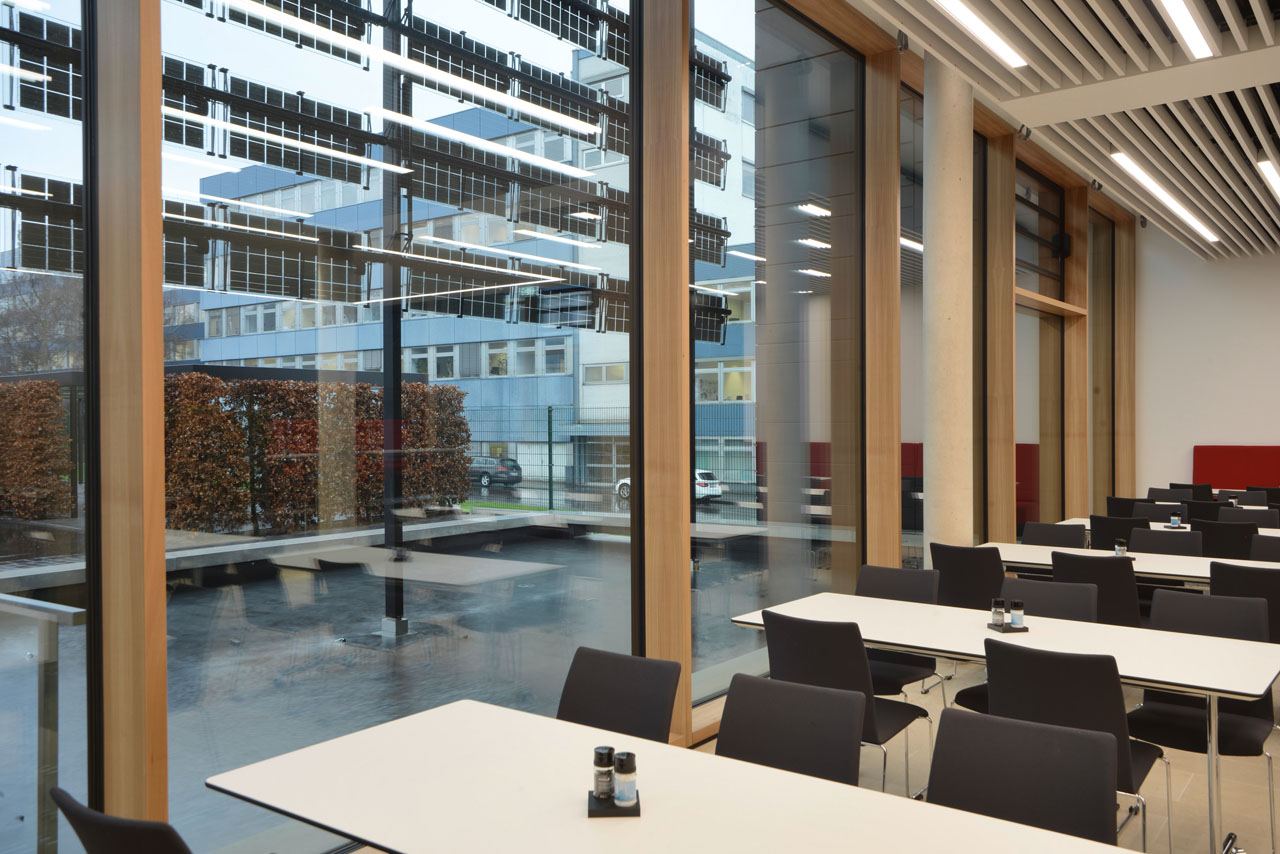

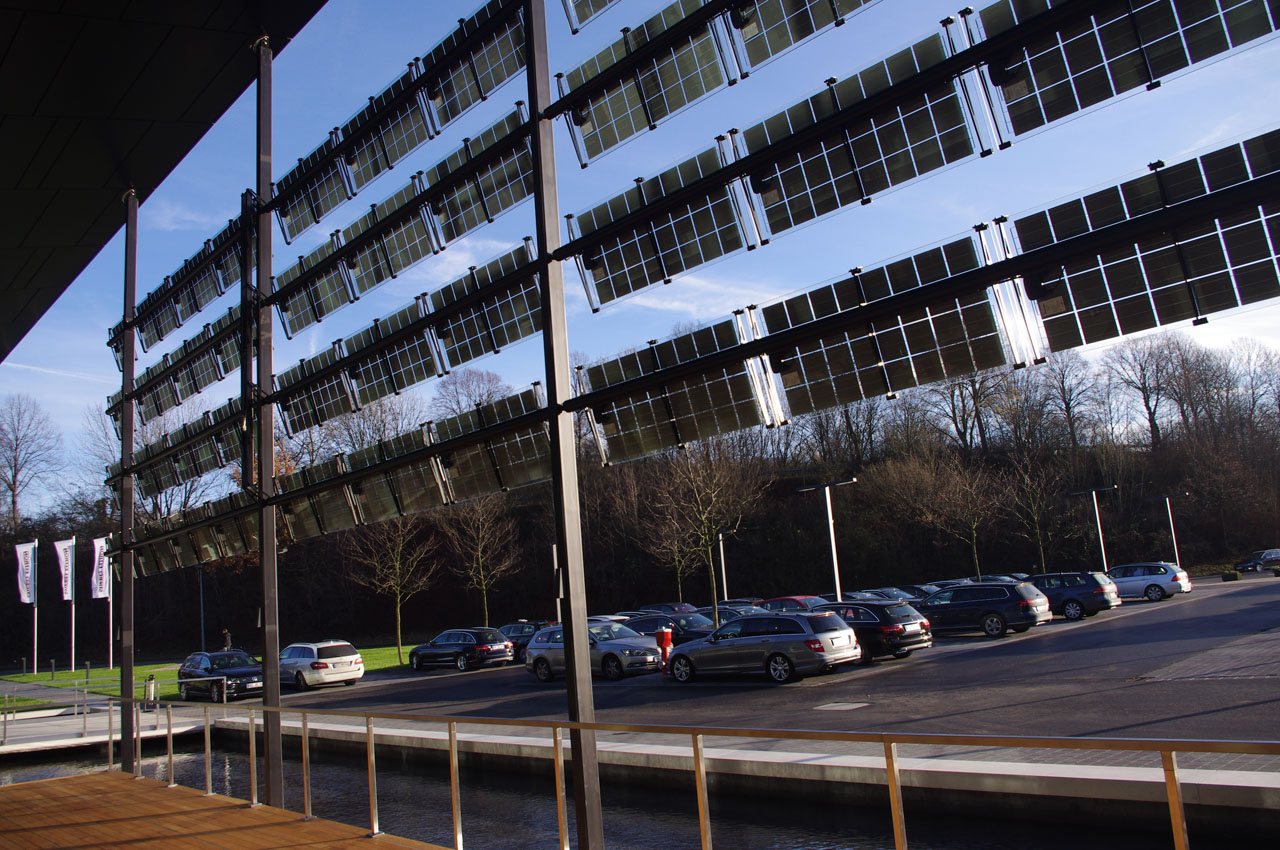

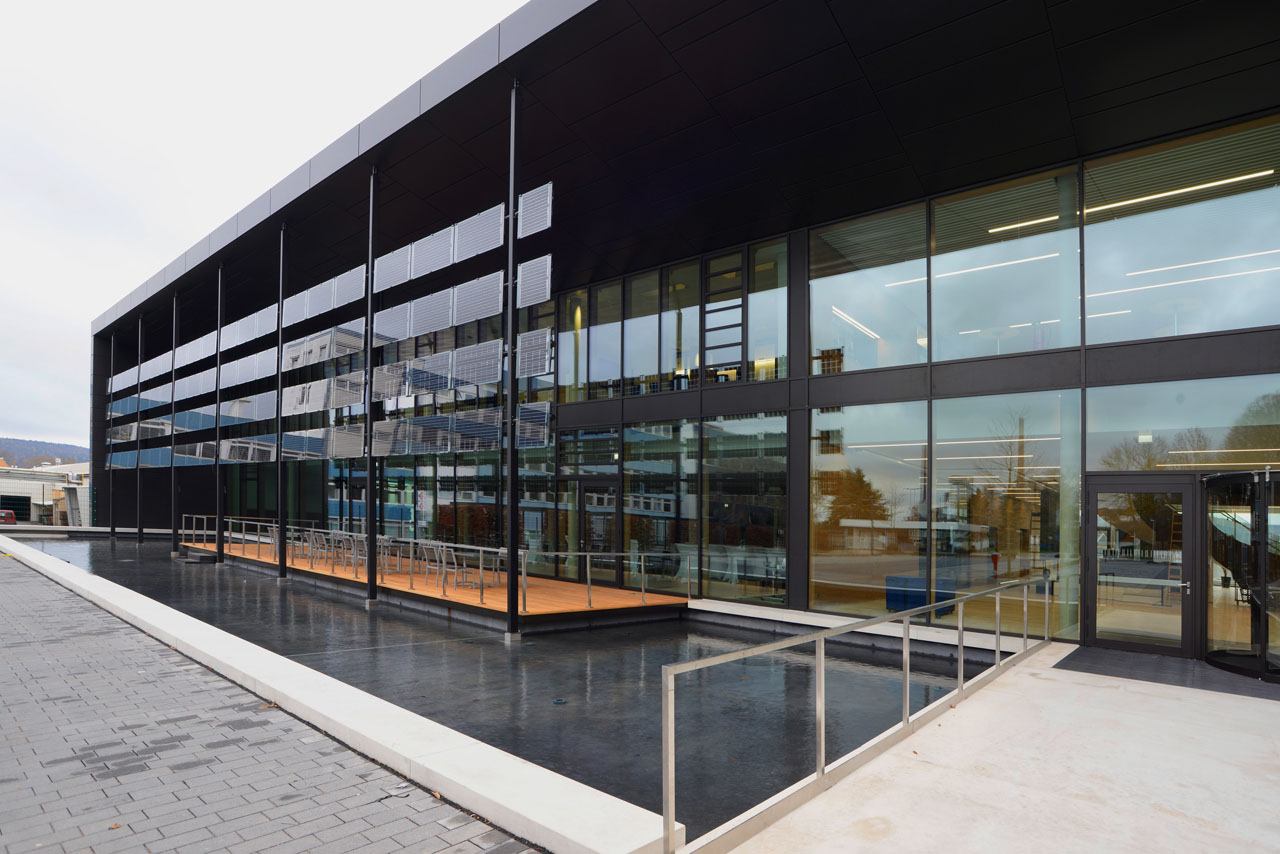

Sun protection guided by the position of the sun by means of tailor-made photovoltaic louvers, optically suspended above the water basin, energy supplier and eye-catcher on the south facade. The DGNB Platinum Awarded Building, with the highest score in the category of educational buildings, places the highest demands on comfort, energy efficiency and environmental protection, as reflected in the DGNB (German Sustainable Building Council) criteria catalogue.

System

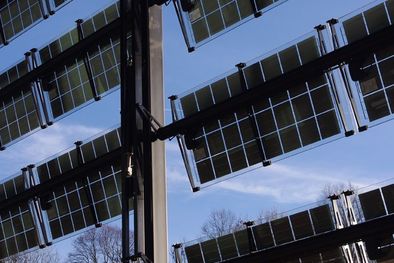

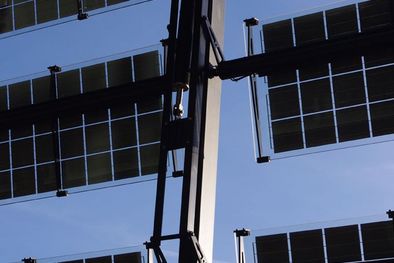

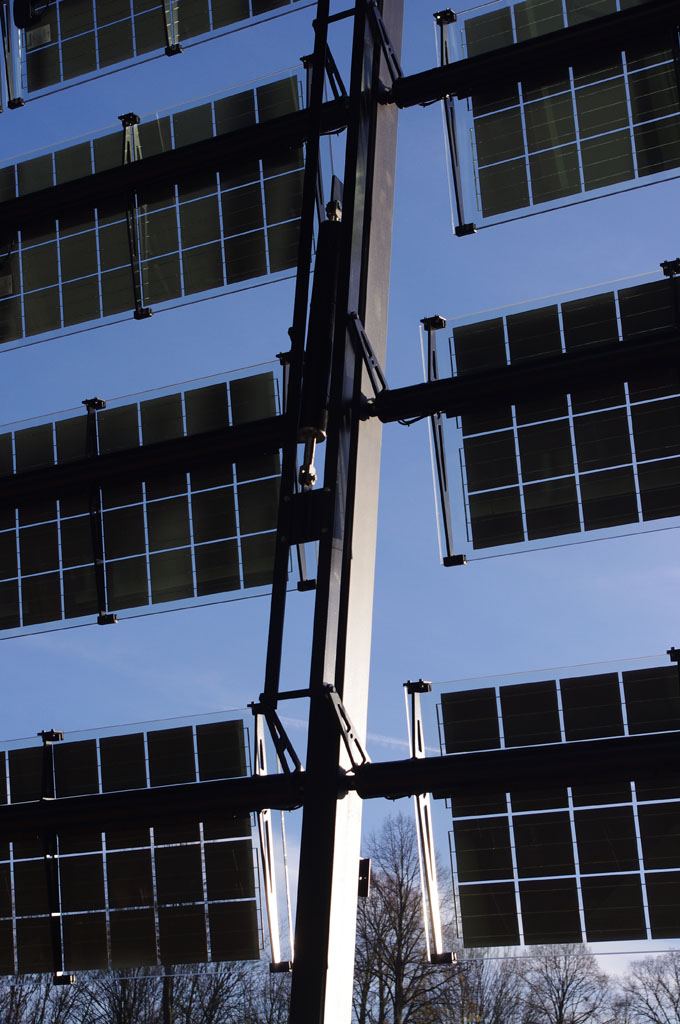

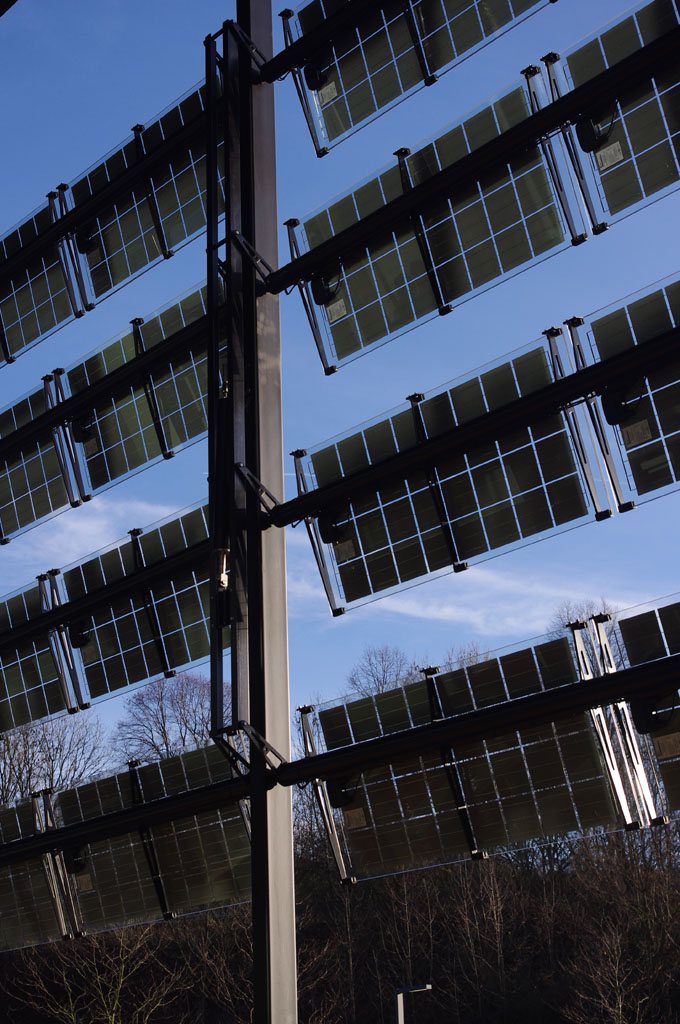

Nevertheless, the PV louver system on the south facade appears to be floating. The solar tracking system ensures optimal energy generation and shading and prevents mutual module shading. Frameless special modules made of glass laminates, held in filigree clamp holders, show PV facade technology in a class of its own. Perfect module design, integrated cabling, silent operation, to name just a few features. An extraordinary business card for the Energy Campus. System output approx. 10.3kWp.
